Weidmüller UR20-1CNT-500
Add to cart to view estimated shipping cost.

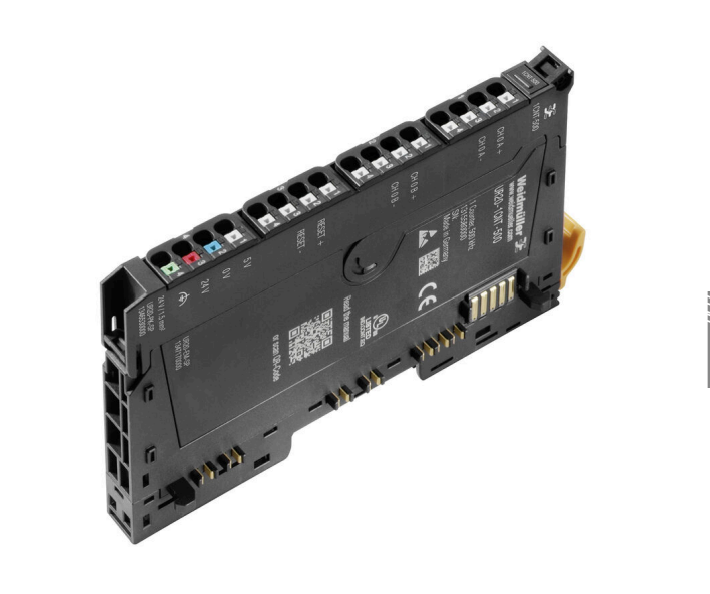

Weidmüller UR20-1CNT-500 — 1-channel high-speed digital counter module, 500 kHz max. input frequency, 32-bit counter resolution, pulse/direction and 1-/2-/4-times operating modes, short-circuit-proof, sensor supply, configurable input filter, PUSH IN connection, IP20, u-remote system, order no. 1315580000. A single-channel functional counter module supporting input frequencies up to 500 kHz with 32-bit resolution, suited to high-speed incremental encoder signal acquisition, frequency measurement, and position counting applications in distributed fieldbus-based automation systems.
Available in stock — ships within 3 days after payment.
Product overview
| Manufacturer | Weidmüller Interface GmbH & Co. KG |
| Type | UR20-1CNT-500 |
| Order number | 1315580000 |
| GTIN (EAN) | 4050118118483 |
| System reference | Lenze W560-P-4B-002 |
| Product type | Remote I/O functional module, digital counter, 1-channel, IP20 |
| Number of counter inputs | 1 |
| Max. input frequency | 500 kHz |
| Counter width | 32 Bit |
| Mode of operation | Pulse, Direction, 1-times, 2-times, 4-times |
| Input type | Type 1 and Type 3 sensors, IEC 61131-2 |
| Input filter | Configurable |
| Short-circuit-proof | Yes |
| Sensor supply | Yes |
| Module diagnostics | Yes |
| Individual channel diagnostics | No |
| Galvanic isolation | 500 V DC between current paths |
| Connection type | PUSH IN |
| Wire cross-section | 0.14 mm²–1.5 mm² (AWG 26–16), solid and finely stranded |
| Supply voltage | 24 V DC +20% / –15%, via system bus |
| Fieldbus protocols | PROFINET IRT/RT, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link, CC-Link IE TSN, IEC 61162-450 |
| System bus speed | Max. 48 Mbit/s |
| Mounting | TS 35 DIN rail |
| Operating temperature | –20°C to +60°C |
| Storage temperature | –40°C to +85°C |
| Dimensions (W × H × D) | 11.5 mm × 120 mm × 76 mm |
| Net weight | 87.6 g |
| Flammability rating | UL 94 V-0 |
| Approvals / certifications | CE, UKCA, cULus (E141197), cULusEX (E223527), ATEX, IECEx, ClassNK, DNV, KR, ABS, RoHS compliant |
| Condition | New — in original packaging (OVP) |
Applications
- High-speed incremental encoder signal acquisition at up to 500 kHz in machine and drive automation systems
- Position counting and frequency measurement tasks requiring 32-bit counter resolution in distributed u-remote I/O architectures
- Pulse and direction counting applications with configurable 1-, 2-, or 4-times evaluation modes for precise motion feedback
- Hazardous area installations (ATEX/IECEx) requiring certified high-frequency counter input modules
