SWD4-8SFF2-5 Eaton SmartWire-DT ribbon cable coupling
Precio regular
€8,82
inc. VAT
Precio regular
-76%
€36,00
Precio de venta
€8,82
inc. VAT
Final shipping
calculated at checkout.
Add to cart to view estimated shipping cost.
Add to cart to view estimated shipping cost.
SmartWire-DT ribbon cable coupling from Eaton, model SWD4-8SFF2-5 (catalog number 116024). Compact 8-pole accessory coupling for connecting SWD ribbon cables via SWD4-8MF2 blade terminals. Certified to UL, CSA, EN 50178, and IEC/EN 61131-2 standards with IP20 degree of protection.
Available in stock — ships within 24 hours after payment.

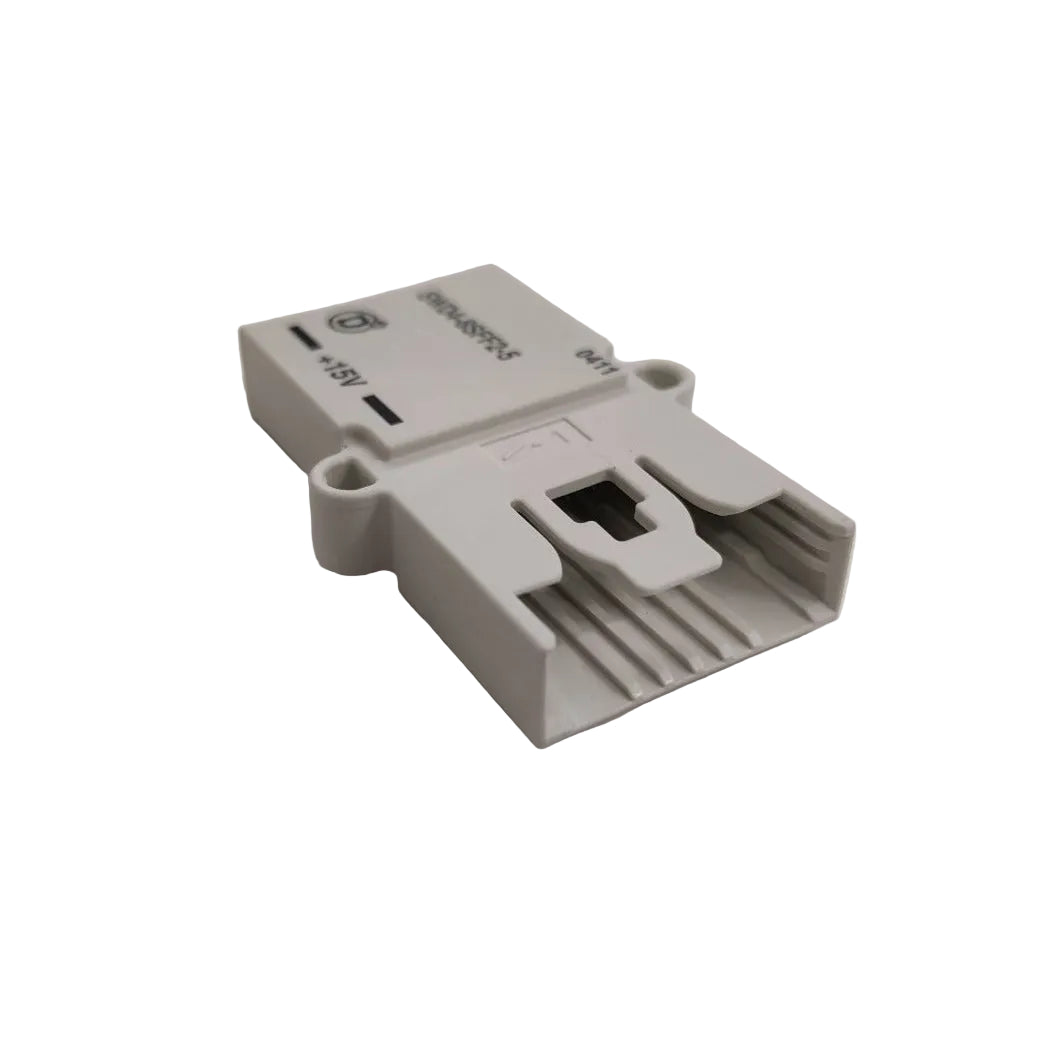

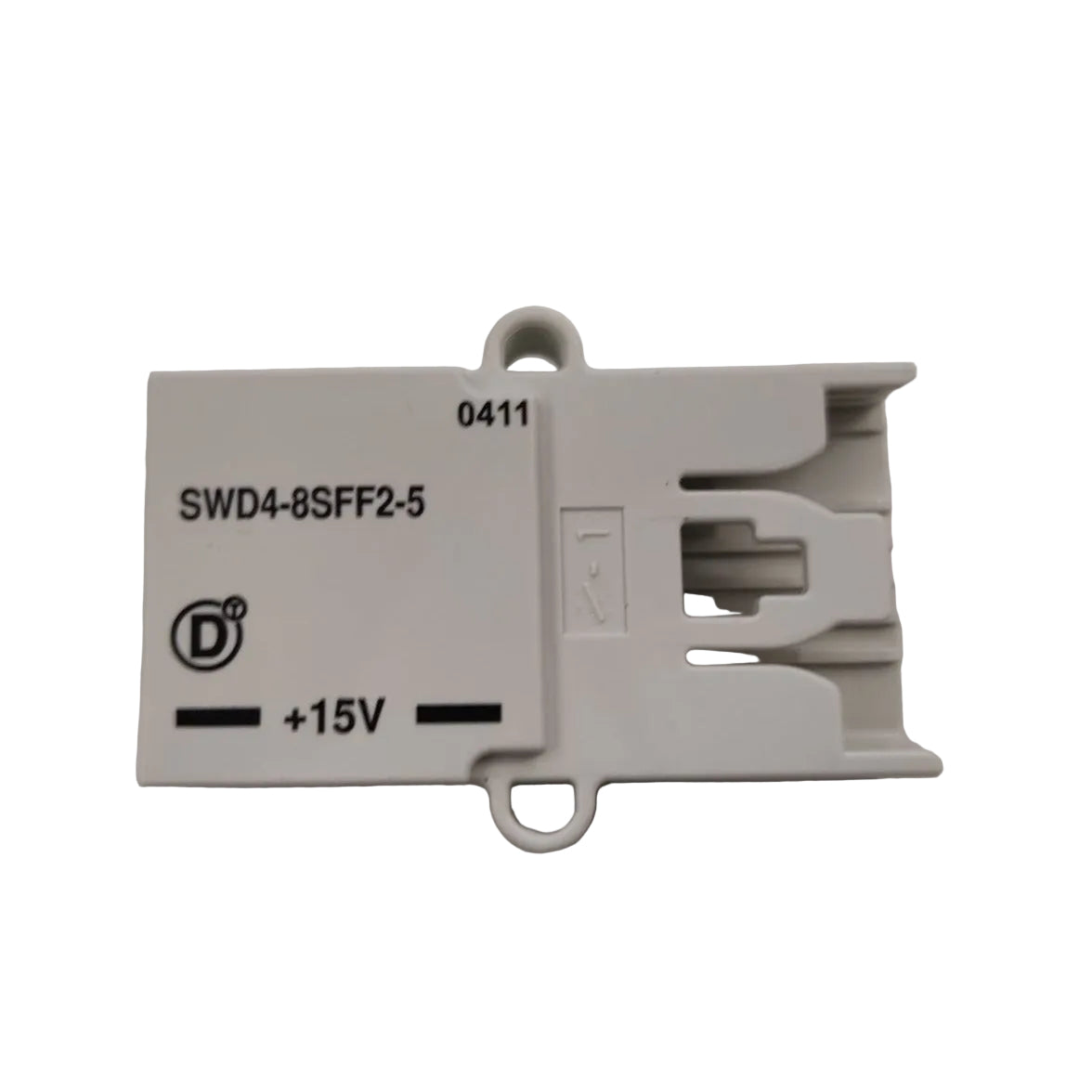

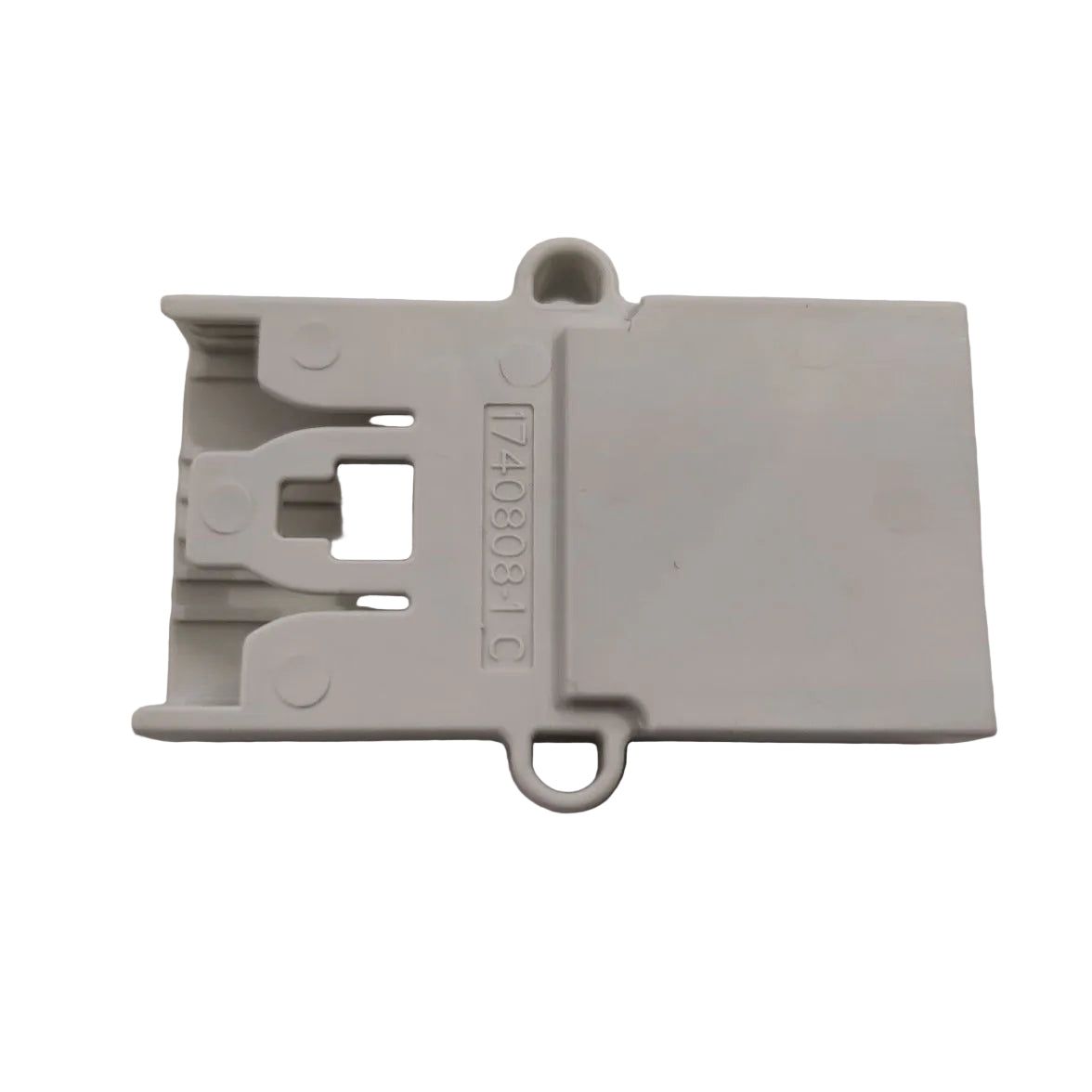

The image is for representation purposes only
Product overview
| Model | SWD4-8SFF2-5 |
| Catalog number | 116024 |
| EAN | 4015081157648 |
| Manufacturer | Eaton |
| Product type | SmartWire-DT accessory coupling — 8-pole blade terminal connector |
| Function | Connects SWD ribbon cables via SWD4-8MF2 blade terminals |
| Connection type | Connection 1: Plug, 8-pole — Connection 2: Bus, 8-pole |
| Dimensions (D × H × W) | 10 × 35 × 49 mm |
| Weight | 0.004 kg |
| Degree of protection | IP20 (IEC/EN 60529) |
| Ambient operating temperature | −25 °C to +55 °C |
| Storage temperature | −40 °C to +70 °C |
| Relative humidity | 5–95 % non-condensing (IEC/EN 60068-2-30) |
| Vibration resistance | 1 g at 8.4–150 Hz / 3.5 mm amplitude at 5–8.4 Hz (IEC/EN 61131-2) |
| Shock resistance | 15 g, half-sinusoidal 11 ms, 9 impacts (IEC/EN 60068-2-27) |
| ESD immunity | Air discharge 8 kV (Level 3) / Contact discharge 4 kV (Level 2) |
| Insertion cycles | 200 |
| Certifications | UL (File No.: E29184, Category NKCR), CSA (File No.: 2324643, Class 3211-07), EN 50178, IEC/EN 61131-2 |
| Condition | New in original packaging |
Applications
- Connecting SmartWire-DT ribbon cable segments via SWD4-8MF2 blade terminals
- Extension and bridging of SmartWire-DT bus networks in control panels
- Industrial automation and machine control installations
- Compatible with Eaton easyE4 and other SmartWire-DT enabled controllers
