Weidmüller UR20-8DO-P-2W-HD
Precio regular
€77,99
inc. VAT
Final shipping
calculated at checkout.
Add to cart to view estimated shipping cost.
Add to cart to view estimated shipping cost.

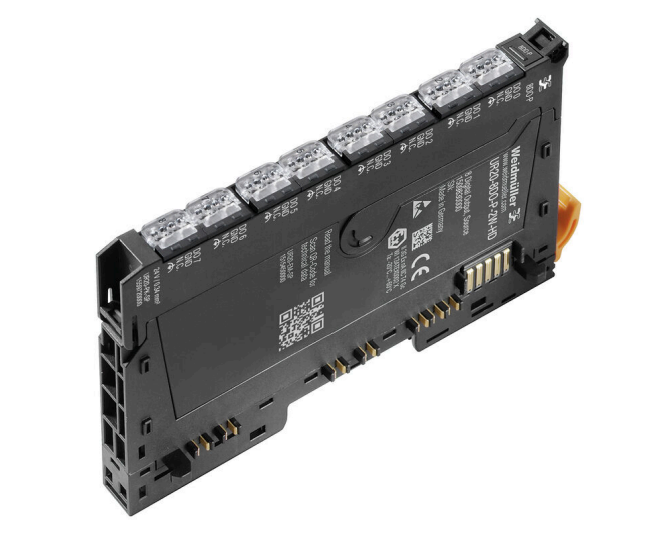

Weidmüller UR20-8DO-P-2W-HD — 8-channel digital output module, P-switching (PNP), high-density 2-wire, 500 mA per channel / 4 A per module, 24 V DC, short-circuit-proof with automatic restart, PUSH IN connection, IP20, u-remote system, order no. 1509830000. (Lenze W560-C-3A-003). Supports ohmic, inductive, and lamp loads up to 1 kHz, with 500 V channel-to-channel insulation and per-channel and module-level LED status indication. Note: connecting plug UR20-PG0.35 (order no. 1469340000) must be ordered separately.
Available in stock — ships within 3 days after payment.
Product overview
| Manufacturer | Weidmüller Interface GmbH & Co. KG |
| Type | UR20-8DO-P-2W-HD |
| Order number | 1509830000 |
| GTIN (EAN) | 4050118318487 |
| System reference | Lenze W560-C-3A-003 |
| Product type | Remote I/O digital output module, IP20, high-density |
| Number of outputs | 8 |
| Switching type | P-switching (PNP) |
| Output current per channel | 500 mA max. |
| Output current per module | 4 A max. |
| Leakage current | < 0.5 mA |
| Load types | Ohmic, inductive (DC13), lamp load |
| Switching frequency (resistive, lamp) | 1 kHz (min. 47 Ω / 12 W lamp load) |
| Switching frequency (inductive) | 1 kHz (with free-wheeling diode) / 2 Hz (DC13 without) |
| Short-circuit protection | Yes — automatic restart after short-circuit |
| Response time of protective circuit | < 100 µs (current limiting) |
| Max. response time, high | 100 µs |
| Max. response time, low | 250 µs |
| Switch-off energy (inductive) | < 150 mJ per channel |
| Insulation (channel to channel) | 500 V |
| Feedback-free | Yes |
| Actuator connection | 2-wire |
| Supply voltage | 24 V DC +20% / −15%, via system bus |
| Connection type | PUSH IN, single-conductor |
| Wire cross-section | 0.14 mm² to 1.5 mm² (solid and stranded) |
| Galvanic isolation | 500 V DC between current paths |
| Module diagnosis | Yes |
| Mounting | DIN rail TS 35 |
| Dimensions (W × H × D) | 11.5 × 120 × 76 mm |
| Net weight | 66 g |
| Operating temperature | −20°C to +60°C |
| Storage temperature | −40°C to +85°C |
| Approvals | CE, cULus (E141197), ATEX, IECEx, DNV, ClassNK, KR, RoHS |
| Important note | Connecting plug UR20-PG0.35 (order no. 1469340000) must be ordered separately |
| Condition | New — in original packaging (OVP) |
