Weidmüller UR20-16DO-P-PLC-INT
Add to cart to view estimated shipping cost.

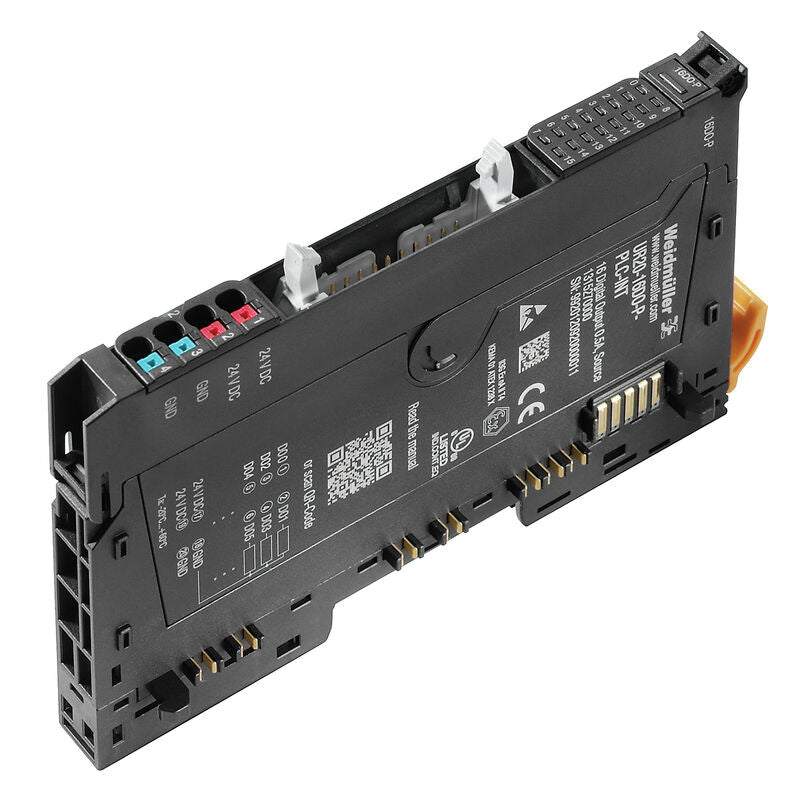

Weidmüller UR20-16DO-P-PLC-INT / Lenze W560-C-4A-004 — digital output module, 16-channel, P-switching, PLC interface connection, 24 V DC, PUSH IN, IP20, u-remote system, order no. 1315270000. A 16-channel P-switching digital output module for the u-remote system, designed for the incorporation of decentralised actuators. All outputs are compliant with DC-13 actuator specifications per DIN EN 60947-5-1 and IEC 61131-2, with a maximum output current of 500 mA per channel and operating frequencies up to 1 kHz. The module features short-circuit protection with automatic restart, a fast protective circuit response time of under 100 µs, feedback-free outputs, and clearly visible per-channel and module-status LEDs. The PLC interface connection variant enables rapid cabling to Weidmüller interface sub-assemblies using system cables. The module electronics supply the connected actuators from the output current path (UOUT). Compatible with all u-remote fieldbus head stations.
Available in stock — ships within 3 days after payment.
Product overview
| Manufacturer | Weidmüller Interface GmbH & Co. KG |
| Type | UR20-16DO-P-PLC-INT |
| Order number | 1315270000 |
| GTIN (EAN) | 4050118118162 |
| System reference | Lenze W560-C-4A-004 |
| Product type | Remote I/O module, IP20, Digital signals, Output, 16-channel, PUSH IN connection, PLC interface |
| Module type | Digital output module — 16-channel, P-switching, PLC interface |
| Number of digital outputs | 16 |
| Output current per channel, max. | 500 mA |
| Leakage current | <0.5 mA |
| Max. response time, high | 100 µs |
| Max. response time, low | 250 µs |
| Response time of protective circuit | <100 µs (current limiting) |
| Short-circuit protection | Yes — automatic restart following short-circuit |
| Feedback-free | Yes |
| Insulation | 500 V (channel to channel) |
| Module diagnosis | Yes |
| Individual channel diagnosis | No |
| Process data | 2 Bit |
| Diagnostic data | 1 Byte |
| Possible connection | Single-conductor |
| Supply voltage | 24 V DC +20% / –15%, via system bus |
| Current consumption from Isys, typ. | 8 mA |
| Current consumption from IOUT | 25 mA + load |
| Galvanic isolation | 500 V DC between the current paths |
| Type of connection | PUSH IN |
| Wire cross-section | 0.14 mm²–1.5 mm² (AWG 26–16), solid and finely stranded |
| Fieldbus protocols | PROFINET IRT/RT, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link, CC-Link IE TSN, IEC 61162-450 |
| Interface | u-remote system bus |
| Transmission speed, max. | 48 Mbit/s |
| Mounting | TS 35 DIN rail |
| Operating temperature | –20°C to +60°C |
| Storage temperature | –40°C to +85°C |
| Dimensions (W × H × D) | 11.5 mm × 120 mm × 76 mm |
| Mounting dimension – height | 128 mm |
| Net weight | 85 g |
| UL 94 flammability rating | V-0 |
| Pollution severity | 2 |
| RoHS compliance | Compliant with exemption (7a, 7cI) |
| REACH SVHC | Lead 7439-92-1, Diboron trioxide 1303-86-2, Lead monoxide 1317-36-8 |
| Product Carbon Footprint | 7.856 kg CO₂ eq. (cradle to gate) |
| Approvals / certifications | CE, UKCA, cULus (E141197), cULusEX (E223527), ATEX, IECEx, ClassNK, DNV, KR, ABS, KoreaCert, RoHS compliant |
| Condition | New — in original packaging (OVP) |
Applications
- Decentralised actuator control in machine and plant automation — 16 P-switching outputs per module drive solenoid valves, motor starters, indicator lamps, and other DC-13 loads per DIN EN 60947-5-1 and IEC 61131-2 at up to 500 mA per channel
- PLC interface variant for rapid, structured cabling to proven Weidmüller interface sub-assemblies via pre-assembled system cables, enabling fast commissioning and clean wiring in dense control cabinet installations
- High-density output applications where DIN rail space is at a premium — 16 channels in an 11.5 mm wide housing reduce station length compared to lower-density output modules
- Applications requiring output protection and system reliability — automatic restart after short-circuit, a protective circuit response under 100 µs, and feedback-free outputs safeguard both the module and connected field devices
- Hazardous area installations (ATEX/IECEx) and marine applications requiring certified digital output modules with ABS, ClassNK, DNV, and KR approvals
