Weidmüller UR20-1SSI
Add to cart to view estimated shipping cost.

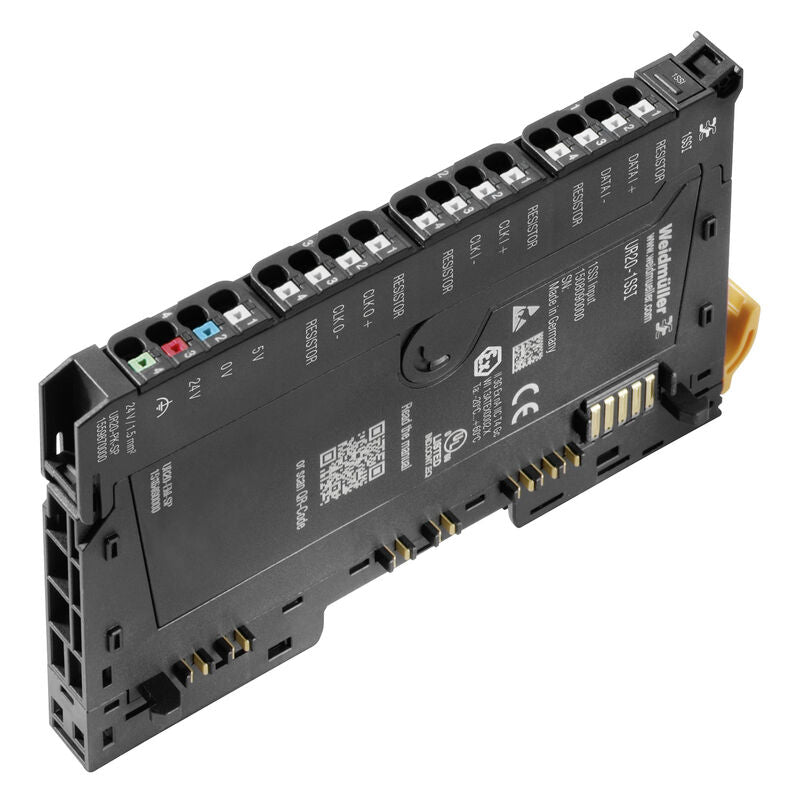

Weidmüller UR20-1SSI / Lenze W580-C-NT-003 — synchronous serial interface (SSI) module, single-channel, 24 V DC, PUSH IN, IP20, u-remote system, order no. 1508090000. A single-channel SSI functional module for the u-remote system, designed for high-precision positioning tasks using absolute value encoders. The module supports both listening and master mode operation, making it suitable for a wide range of encoder integration scenarios. SSI data is transmitted in Binary or Gray-Code format, with a maximum cable length of 320 m at 125 kHz and a delay time of 1 µs. Digital inputs feature reverse polarity protection and an integrated sensor supply sourced from the input current path (UIN). The module electronics supply the connected sensors from the input current path. Compatible with all u-remote fieldbus head stations.
Available in stock — ships within 3 days after payment.
Product overview
| Manufacturer | Weidmüller Interface GmbH & Co. KG |
| Type | UR20-1SSI |
| Order number | 1508090000 |
| GTIN (EAN) | 4050118317046 |
| System reference | Lenze W580-C-NT-003 |
| Product type | Remote I/O module, IP20, SSI functional module, single-channel, PUSH IN connection |
| Module type | Functional module — synchronous serial interface (SSI), single-channel |
| SSI mode | Listening, Master |
| Data format | Binary, Gray-Code |
| Cable length, max. | 320 m at 125 kHz |
| Delay time | 1 µs |
| Reverse polarity protection | Yes |
| Sensor supply | Yes |
| Supply voltage | 24 V DC +20% / –15%, via system bus |
| Current consumption from Isys, typ. | 8 mA |
| Current consumption from IIN | 25 mA + sensor feed |
| Current consumption from IOUT | 25 mA + sensor feed |
| Galvanic isolation | 500 V DC between the current paths |
| Type of connection | PUSH IN |
| Wire cross-section | 0.14 mm²–1.5 mm² (AWG 26–16), solid and finely stranded |
| Fieldbus protocols | PROFINET IRT/RT, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link, CC-Link IE TSN |
| Interface | u-remote system bus |
| Transmission speed, max. | 48 Mbit/s |
| Mounting | TS 35 DIN rail |
| Operating temperature | –20°C to +60°C |
| Storage temperature | –40°C to +85°C |
| Dimensions (W × H × D) | 11.5 mm × 120 mm × 76 mm |
| Mounting dimension – height | 128 mm |
| Net weight | 87 g |
| UL 94 flammability rating | V-0 |
| Pollution severity | 2 |
| Test voltage | 500 V |
| Surge voltage category | II |
| Vibration resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5 mm amplitude; 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration (IEC 60068-2-6) |
| Shock | 15 g over 11 ms, half sinus wave (IEC 60068-2-27) |
| Air humidity (operation/storage/transport) | 10% to 95%, non-condensing (DIN EN 61131-2) |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m, DIN EN 61131-2) |
| RoHS compliance | Compliant with exemption (7a, 7cI) |
| REACH SVHC | Lead 7439-92-1 |
| Product Carbon Footprint | 8.705 kg CO₂ eq. (cradle to gate) |
| Approvals / certifications | CE, UKCA, cULus (E141197), cULusEX (E223527), ATEX, IECEx, ClassNK, DNV, KR, ABS, KoreaCert, RoHS compliant |
| Condition | New — in original packaging (OVP) |
Applications
- High-precision absolute position acquisition using SSI-compatible encoders — the module operates in master mode to actively clock data from the encoder, or in listening mode to passively monitor an existing SSI link between an encoder and another controller, covering both standalone and redundant monitoring topologies
- Long-distance encoder connections in machine and plant engineering — with a maximum cable length of 320 m at 125 kHz, the module is suited to large-format systems such as cranes, gantries, conveyor lines, and printing or packaging machines where the encoder is physically distant from the control cabinet
- Flexible data format support (Binary and Gray-Code) for integration of a broad range of commercially available SSI absolute encoders without additional signal conversion hardware
- Positioning and speed feedback in servo and motion control applications within the u-remote system, providing precise encoder data directly over the fieldbus to the controlling PLC or drive system
- Hazardous area installations (ATEX/IECEx) and marine applications requiring certified SSI functional modules with ABS, ClassNK, DNV, and KR approvals
