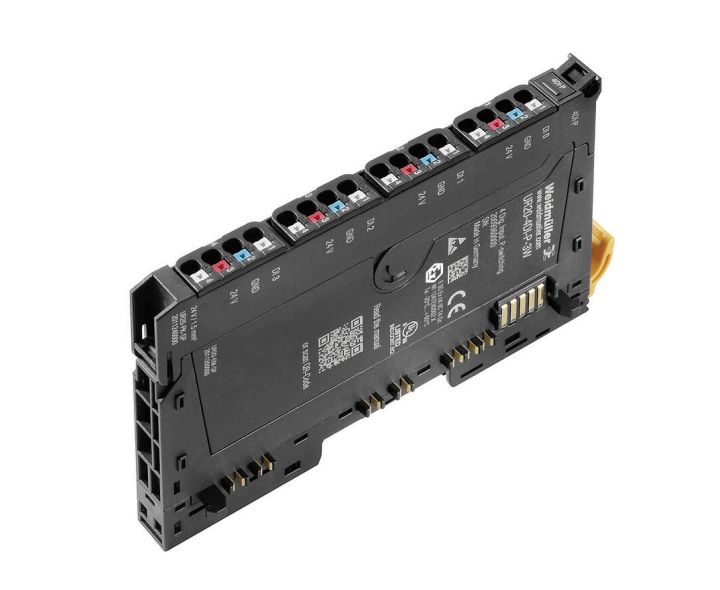

Weidmüller UR20-4DI-P-3W
Regular price
€53,99
inc. VAT
Final shipping
calculated at checkout.
Add to cart to view estimated shipping cost.
Add to cart to view estimated shipping cost.
Weidmüller UR20-4DI-P-3W — 4-channel digital input module, P- or N-switching, reverse polarity protection, 2-wire and 3-wire sensor connection, 24 V DC, configurable input filter, PUSH IN connection, IP20, u-remote system, order no. 2009360000. (Lenze W560-C-2E-004). Supports Type 1 and Type 3 sensors per IEC 61131-2 with a maximum input frequency of up to 1 kHz, suited to a wide range of binary signal acquisition applications including sensors, transmitters, switches, and proximity switches.
Available in stock — ships within 3 days after payment.
Product overview
| Manufacturer | Weidmüller Interface GmbH & Co. KG |
| Type | UR20-4DI-P-3W |
| Order number | 2009360000 |
| GTIN (EAN) | 4050118395143 |
| System reference | Lenze W560-C-2E-004 |
| Product type | Remote I/O module, digital input, 4-channel, IP20 |
| Number of digital inputs | 4 |
| Sensor type | Type 1 and Type 3, IEC 61131-2 |
| Sensor connection | 2-wire, 3-wire (P- or N-switching, with reverse polarity protection) |
| Input voltage high / low | >11 V / <5 V |
| Input filter | Configurable |
| Galvanic isolation | 500 V DC between current paths |
| Sensor supply | Yes |
| Module diagnostics | Yes |
| Connection type | PUSH IN |
| Wire cross-section | 0.14 mm²–1.5 mm² (AWG 26–16), solid and finely stranded |
| Supply voltage | 24 V DC +20% / –15%, via system bus |
| Fieldbus protocols | PROFINET IRT/RT, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link, CC-Link IE TSN, IEC 61162-450 |
| System bus speed | Max. 48 Mbit/s |
| Mounting | TS 35 DIN rail |
| Operating temperature | –20°C to +60°C |
| Storage temperature | –40°C to +85°C |
| Dimensions (W × H × D) | 11.5 mm × 120 mm × 76 mm |
| Net weight | 85 g |
| Flammability rating | UL 94 V-0 |
| Approvals / certifications | CE, UKCA, ClassNK, DNV, KR, ABS, RoHS compliant |
| Condition | New — in original packaging (OVP) |
Applications
- Industrial automation and process control systems with distributed I/O architectures
- Machine building and factory automation with PLC-connected sensors and proximity switches
- Remote I/O signal acquisition in fieldbus-based control environments
- Binary signal capture from sensors, transmitters, switches, or proximity switches in P- or N-switching configurations
