Weidmüller UR20-4DO-N
Add to cart to view estimated shipping cost.

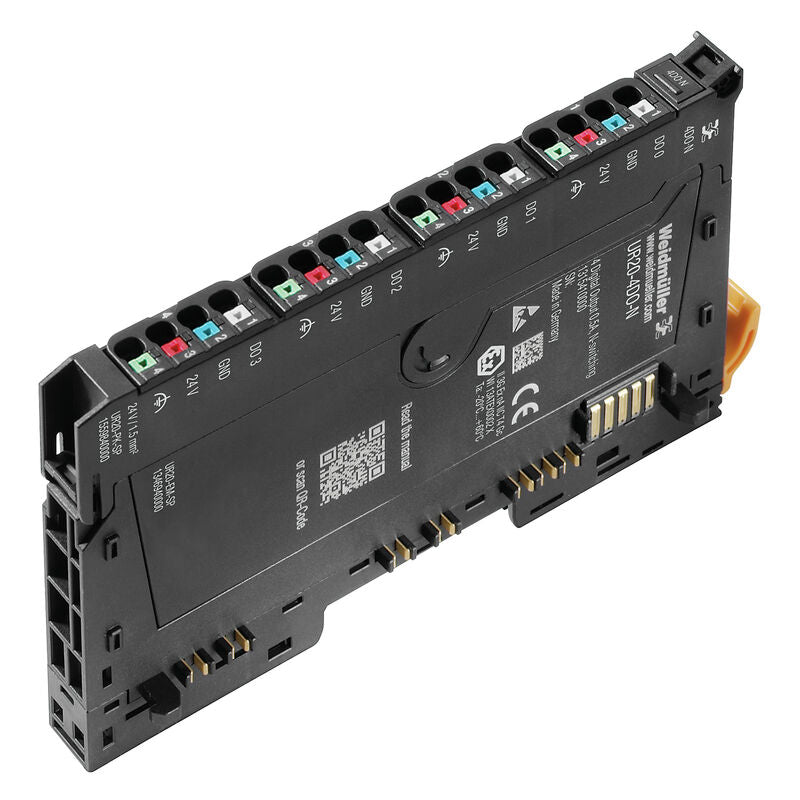

Weidmüller UR20-4DO-N / Lenze W560-C-2A-002 — 4-channel digital output module, N-switching, short-circuit-proof, PUSH IN, IP20, u-remote system, order no. 1315410000. A 4-channel N-switching digital output module for the incorporation of decentralised actuators, designed for DC-13 actuators per DIN EN 60947-5-1 and IEC 61131-2. All outputs are short-circuit-proof with automatic restart, support lamp, ohmic and inductive loads at up to 1 kHz, and feature clearly visible LEDs signalling the status of the module and individual channels. The module electronics supply the connected actuators from the output current path (UOUT).
Available in stock — ships within 3 days after payment.
Product overview
| Manufacturer | Weidmüller Interface GmbH & Co. KG |
| Type | UR20-4DO-N |
| Order number | 1315410000 |
| GTIN (EAN) | 4050118118544 |
| System reference | Lenze W560-C-2A-002 |
| Product type | Remote I/O module, IP20, Digital signals, Output, 4-channel |
| Number of digital outputs | 4 |
| Output type | Lamp load, Ohmic, Inductive |
| Output current per channel, max. | 500 mA |
| Output current per module, max. | 2000 mA |
| Resistive load switching frequency | 1 kHz (min. 47 Ω) |
| Lamp load switching frequency | 10 Hz (12 W) |
| Inductive load switching frequency | 2 Hz (DC13) |
| Max. response time, high | 100 µs |
| Max. response time, low | 250 µs |
| Switch-off energy (inductive) | <150 mJ per channel |
| Leakage current | <0.1 mA |
| Short-circuit-proof | Yes (automatic restart) |
| Module diagnostics | Yes |
| Individual channel diagnostics | No |
| Actuator connection | 2-wire, 3-wire, 3-wire + FE |
| Type of connection | PUSH IN |
| Wire cross-section | 0.14 mm²–1.5 mm² (AWG 26–16), solid and finely stranded |
| Supply voltage | 24 V DC +20% / –15%, via system bus |
| Current consumption (Isys) | 8 mA typical |
| Current consumption (IOUT) | 10 mA + load |
| Galvanic isolation | 500 V DC between current paths |
| Fieldbus protocols | PROFINET IRT/RT, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link, CC-Link IE TSN, IEC 61162-450 |
| System bus speed | max. 48 Mbit/s |
| Module type | Digital output module |
| Interface | u-remote system bus |
| Mounting | TS 35 DIN rail |
| Operating temperature | –20°C to +60°C |
| Storage temperature | –40°C to +85°C |
| Dimensions (W × H × D) | 11.5 mm × 120 mm × 76 mm |
| Net weight | 85 g |
| UL 94 flammability rating | V-0 |
| Pollution severity | 2 |
| Vibration resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5 mm amplitude; 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration (IEC 60068-2-6) |
| Shock | 15 g over 11 ms, half sinus wave (IEC 60068-2-27) |
| RoHS compliance | Compliant with exemption (7a, 7cI) |
| REACH SVHC | Lead 7439-92-1 |
| Product Carbon Footprint | 8.702 kg CO₂ eq. (cradle to gate) |
| Approvals / certifications | CE, UKCA, cULus (E141197), cULusEX (E223527), ATEX, IECEx, ClassNK, DNV, KR, ABS, KoreaCert, RoHS compliant |
| Condition | New — in original packaging (OVP) |
