Weidmüller UR20-8AI-I-16-HD

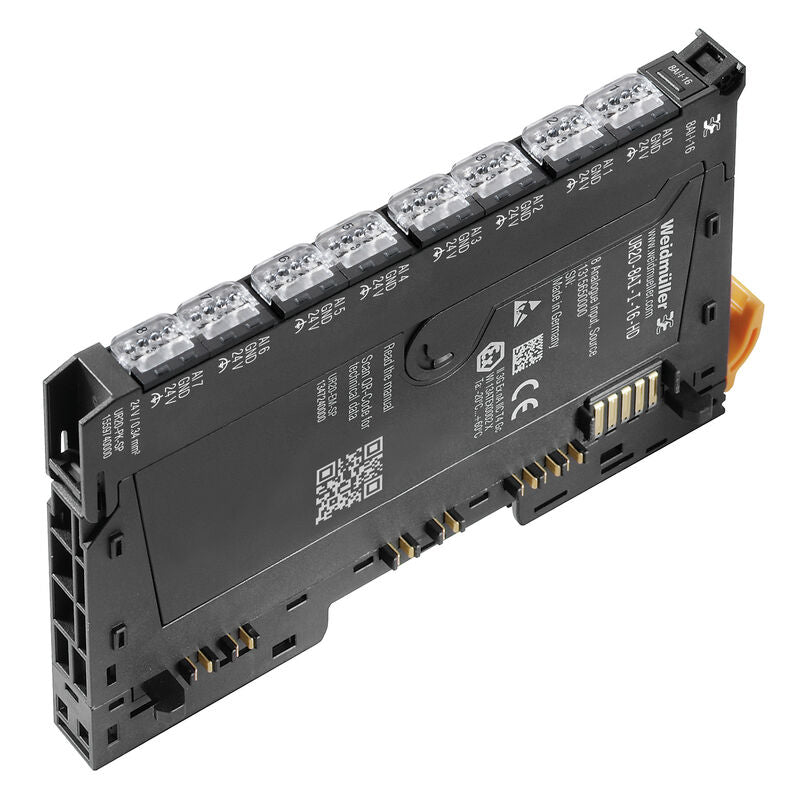

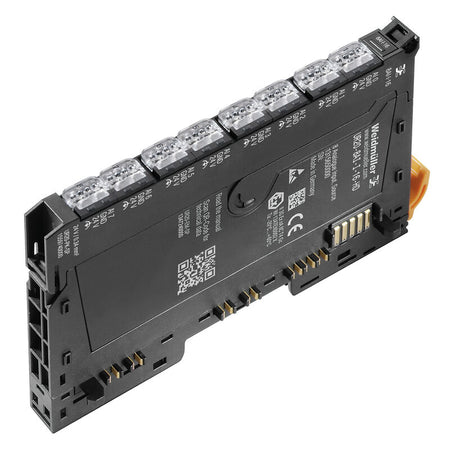

Weidmüller UR20-8AI-I-16-HD / Lenze W560-C-3A-002 — analogue input module, 8-channel, current input, high-density, 16-bit resolution, 24 V DC, IP20, u-remote system, order no. 1315650000. The high-density (HD) design accommodates 8 input channels in the standard 11.5 mm u-remote module footprint, doubling the sensor density compared to standard 4-channel analogue modules. Each channel supports 2-wire, 3-wire, and 3-wire + FE sensor connections. The module is short-circuit-proof and reverse-polarity protected, with an integrated sensor supply from the input current path (UIN). Module-level diagnosis and per-channel status LEDs are included. The connecting plug (order no. 1469340000) must be ordered separately. Process data is 16 bytes, enabling full transmission of all 8 channel values in a single fieldbus cycle. Compatible with all u-remote fieldbus head stations.

Available in stock — ships within 3 days after payment.

Product overview

Applications

• Maximum analogue current input density in space-constrained u-remote stations — with 8 current-loop inputs in the standard 11.5 mm module footprint, the UR20-8AI-I-16-HD provides twice the channel count of the standard 4-channel variant in the same cabinet width, making it the preferred choice wherever a large number of 4…20 mA field instruments must be connected within a limited DIN rail length
• High-precision process measurement for flow, pressure, level, and temperature — 16-bit resolution with 0.1% FSR accuracy and a 1 ms conversion time per channel make the module suitable for demanding process control loops where measurement quality and update speed directly affect product quality or plant efficiency
• Flexible multi-sensor wiring in field instrumentation — each of the 8 channels independently supports 2-wire, 3-wire, and 3-wire + FE sensor connections, allowing mixed wiring topologies within a single module and accommodating the full range of standard 4…20 mA field transmitters without additional adapters
• High-density I/O stations for process industry applications — the module's 74 g weight and compact HD plug-in connector system (connecting plug order no. 1469340000, sold separately) are optimised for dense marshalling panel and junction box installations where cable density and cabinet weight are critical constraints
• Hazardous area installations (ATEX/IECEx) and marine applications (ClassNK, ABS, DNV) requiring a certified 8-channel high-density analogue current input module within the u-remote platform, compatible with all u-remote fieldbus head stations
