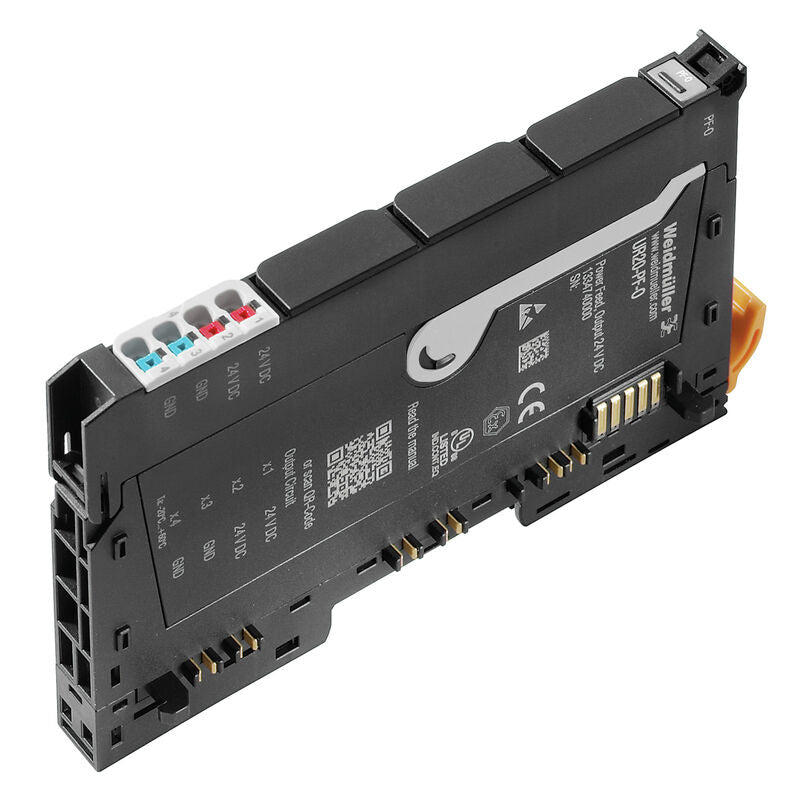

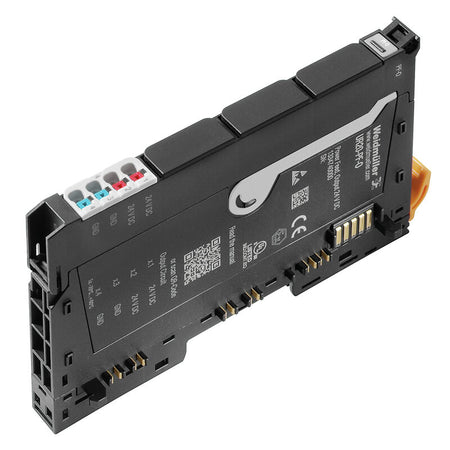

Weidmüller UR20-PF-O
Regular price
€45,59
inc. VAT
Regular price
-30%
€64,79
Sale price
€45,59
inc. VAT
Final shipping
calculated at checkout.
Add to cart to view estimated shipping cost.
Add to cart to view estimated shipping cost.
Weidmüller UR20-PF-O / Lenze W510-C-PF-002 — power feed module, output current path, 10 A, 24 V DC, PUSH IN, IP20, u-remote system, order no. 1334740000. A power feed module for the u-remote system that refreshes the output current path with up to 10 A at 24 V DC. The power supply is monitored by a voltage diagnosis display, and the standard u-remote plug with proven PUSH IN technology ensures reliable contacts and a time-saving start-up. Compatible with all u-remote fieldbus head stations.
Available in stock — ships within 3 days after payment.
Product overview
| Manufacturer | Weidmüller Interface GmbH & Co. KG |
| Type | UR20-PF-O |
| Order number | 1334740000 |
| GTIN (EAN) | 4050118138122 |
| System reference | Lenze W510-C-PF-002 |
| Product type | Remote I/O module, IP20, Power supply unit, 24 VDC-Output |
| Module type | Power-feed module |
| Feed current (output current path), max. | 10000 mA (10 A) |
| Supply voltage | 24 V DC +20% / –15% |
| Supply voltage for outputs | 24 V DC +20% / –15% |
| Current consumption (IOUT) | <10 mA |
| Diagnostics | Voltage diagnosis display |
| Type of connection | PUSH IN |
| Wire cross-section | 0.14 mm²–1.5 mm² (AWG 26–16), solid and finely stranded |
| Fieldbus protocols | PROFINET IRT/RT, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link, CC-Link IE TSN, IEC 61162-450 |
| Interface | u-remote system bus |
| Mounting | TS 35 DIN rail |
| Operating temperature | –20°C to +60°C |
| Storage temperature | –40°C to +85°C |
| Dimensions (W × H × D) | 11.5 mm × 120 mm × 76 mm |
| Net weight | 76 g |
| UL 94 flammability rating | V-0 |
| Pollution severity | 2 |
| Test voltage | 500 V |
| Surge voltage category | II |
| Vibration resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5 mm amplitude; 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration (IEC 60068-2-6) |
| Shock | 15 g over 11 ms, half sinus wave (IEC 60068-2-27) |
| RoHS compliance | Compliant with exemption (7a, 7cI) |
| REACH SVHC | Lead 7439-92-1 |
| Product Carbon Footprint | 8.010 kg CO₂ eq. (cradle to gate) |
| Approvals / certifications | CE, UKCA, cULus (E141197), cULusEX (E223527), ATEX, IECEx, ClassNK, DNV, KR, ABS, KoreaCert, RoHS compliant |
| Condition | New — in original packaging (OVP) |
Applications
- Refreshing the output current path (UOUT) with up to 10 A at 24 V DC in extended u-remote I/O stations where the output power segment needs replenishment
- Monitored power feed with voltage diagnosis display for safe start-up and ongoing supervision of the output current path in machine and process automation systems
- Space-saving 10 A power feed in a compact 11.5 mm wide DIN rail module with PUSH IN wiring for time-saving installation in distributed u-remote architectures
- Hazardous area installations (ATEX/IECEx) requiring certified power feed modules with marine approvals (ABS, ClassNK, DNV, KR)
