Schneider Electric LV429096 - Micrologic Circuit Breaker Trip Unit + SDE Adapter LV429451

Available in stock and ships within 3 days after payment.

Schneider Electric LV429096 - Micrologic Circuit Breaker Trip Unit + SDE Adapter LV429451

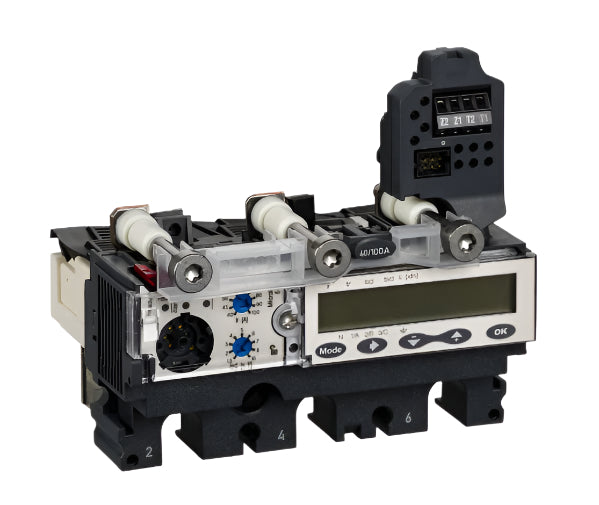

LV429096 - Micrologic Trip Unit

• Trip Unit Type: Micrologic 5.2 E (Energy)
• Rated Current: 40 A at 40°C
• Poles: 3 poles (3d configuration)
• Protection Functions:
  • L: Overload protection (long time)
  • S: Short-time short-circuit protection
  • I: Instantaneous short-circuit protection
• Adjustable Settings:
  • Long-Time Protection: Adjustable pick-up range (18–40 A) and delay (15–400 s at 1.5x Ir)
  • Short-Time Protection: Adjustable pick-up range (1.5–10x Ir) and delay (0–0.4 s)
  • Instantaneous Protection: Adjustable pick-up range (1.5–15x In).
• Voltage Rating: Operates at 690 V AC (50/60 Hz)
• Local Signaling: Equipped with LEDs for overload and operational readiness.
• Additional Features:
  • Zone selective interlocking (ZSI)
  • Thermal memory for enhanced protection

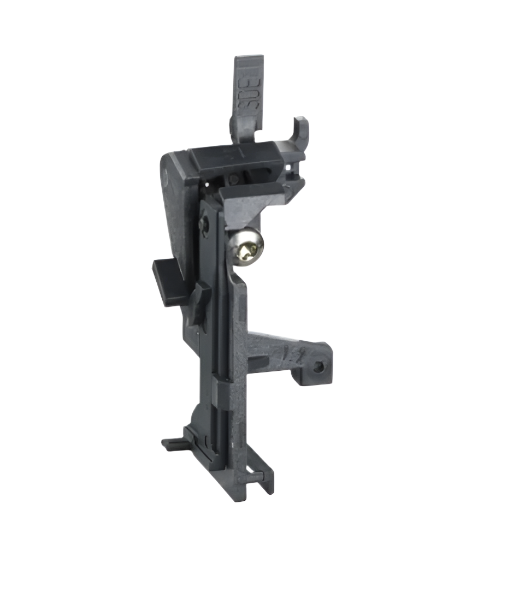

SDE Adapter LV429451

• Product Type: SDE adapter for auxiliary contact integration
• Compatibility:
  • Compact NSX100, NSX160, and NSX250 circuit breakers
  • Compatible with control units such as TM, MA, or Micrologic 2
• Application: Enables the use of auxiliary contacts for control and monitoring purposes
• Dimensions:
  • Height: 4.0 cm
  • Width: 6.0 cm
  • Length: 8.5 cm
• Weight: Approximately 26 g
• Environmental Compliance:
  • RoHS compliant

Product comes with a 12-month warranty.

New in original packaging (OVP).
