Weidmüller UR20-16DO-N-PLC-INT
Normale prijs
€113,99
inc. VAT
Normale prijs
-7%
€122,39
Aanbiedingsprijs
€113,99
inc. VAT
Final shipping
calculated at checkout.
Add to cart to view estimated shipping cost.
Add to cart to view estimated shipping cost.

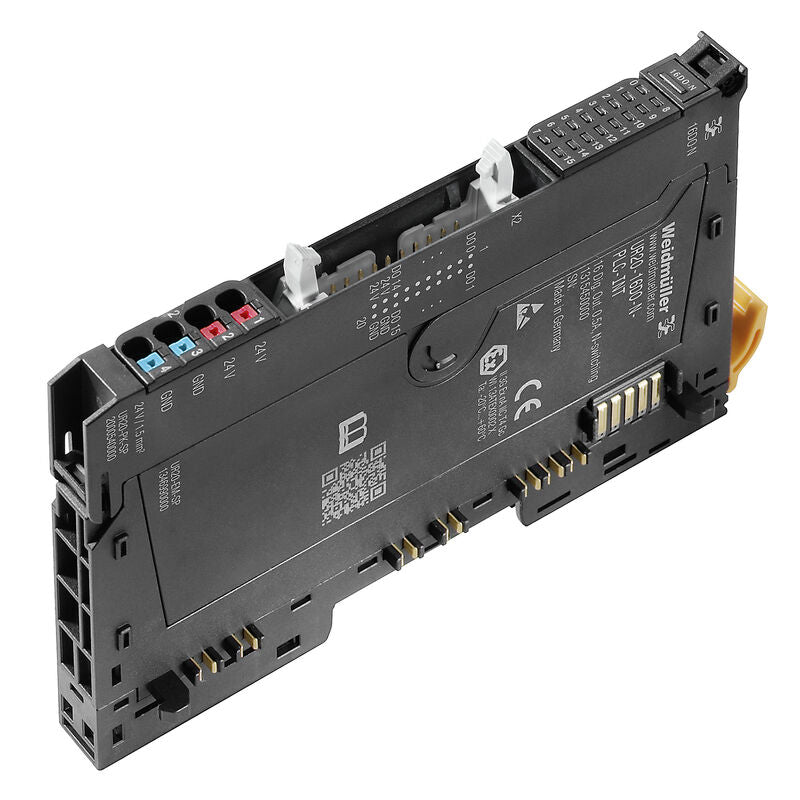

Weidmüller UR20-16DO-N-PLC-INT / Lenze W560-C-4A-002 — digital output module, 16-channel, N-switching, PLC interface connection, 24 V DC, PUSH IN, IP20, u-remote system, order no. 1315450000. A 16-channel N-switching digital output module for the u-remote system, designed for the incorporation of decentralised actuators via a PLC interface connection. All outputs support lamp, ohmic, and inductive load types per DIN EN 60947-5-1 and IEC 61131-2, with a maximum output current of 500 mA per channel and up to 8000 mA per module. The module electronics supply the connected actuators from the output current path (UOUT). Compatible with all u-remote fieldbus head stations.
Available in stock — ships within 3 days after payment.
Product overview
| Manufacturer | Weidmüller Interface GmbH & Co. KG |
| Type | UR20-16DO-N-PLC-INT |
| Order number | 1315450000 |
| GTIN (EAN) | 4050118118452 |
| System reference | Lenze W560-C-4A-002 |
| Product type | Remote I/O module, IP20, Digital signals, Output, 16-channel, PLC interface, PUSH IN connection |
| Module type | Special module — digital output, 16-channel, N-switching, PLC interface |
| Number of digital outputs | 16 |
| Output type | Lamp load, Ohmic, Inductive |
| Output current per channel, max. | 500 mA |
| Output current per module, max. | 8000 mA |
| Output current per module (ribbon cable supply) | 2 A with supply via flat ribbon cable |
| Leakage current | <0.1 mA |
| Max. response time, high | 100 µs |
| Max. response time, low | 250 µs |
| Response time of protective circuit | <100 µs (current limiting) |
| Short-circuit protection | Yes — thermal cut-out with automatic restart |
| Switch-off energy (inductive) | <150 mJ / channel |
| Resistive load (min. 47 Ω) | 1 kHz |
| Lamp load (12 W) | 10 Hz |
| Inductive load (DC13) | 0.2 Hz |
| Feedback-free | Yes |
| Actuator connection | PLC interface — 20-pin flat ribbon cable |
| Module diagnosis | Yes |
| Individual channel diagnosis | No |
| Process data | 2 Byte |
| Diagnostic data | 1 Bit |
| Supply voltage | 24 V DC +20% / –15%, via system bus |
| Current consumption from Isys, typ. | 8 mA |
| Current consumption from IOUT | 30 mA |
| Galvanic isolation | 500 V DC between the current paths |
| Type of connection | PUSH IN |
| Wire cross-section | 0.14 mm²–1.5 mm² (AWG 26–16), solid and finely stranded |
| Fieldbus protocols | PROFINET IRT/RT, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link, CC-Link IE TSN, IEC 61162-450 |
| Interface | u-remote system bus |
| Transmission speed, max. | 48 Mbit/s |
| Mounting | TS 35 DIN rail |
| Operating temperature | –20°C to +60°C |
| Storage temperature | –40°C to +85°C |
| Dimensions (W × H × D) | 11.5 mm × 120 mm × 76 mm |
| Mounting dimension – height | 128 mm |
| Net weight | 87 g |
| UL 94 flammability rating | V-0 |
| Pollution severity | 2 |
| Test voltage | 500 V |
| Surge voltage category | II |
| Vibration resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5 mm amplitude; 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration (IEC 60068-2-6) |
| Shock | 15 g over 11 ms, half sinus wave (IEC 60068-2-27) |
| Air humidity (operation/storage/transport) | 10% to 95%, non-condensing (DIN EN 61131-2) |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m, DIN EN 61131-2) |
| RoHS compliance | Compliant with exemption (7a, 7cI) |
| REACH SVHC | Lead 7439-92-1, Diboron trioxide 1303-86-2, Lead monoxide 1317-36-8 |
| Product Carbon Footprint | 8.028 kg CO₂ eq. (cradle to gate) |
| Approvals / certifications | CE, UKCA, cULus (E141197), cULusEX (E223527), ATEX, IECEx, ClassNK, DNV, KR, ABS, KoreaCert, RoHS compliant |
| Condition | New — in original packaging (OVP) |
Applications
- N-switching (NPN) decentralised actuator control for 16 field devices simultaneously — suitable for lamp, ohmic, and inductive DC-13 loads per DIN EN 60947-5-1 and IEC 61131-2, with up to 500 mA per channel and a total module capacity of 8000 mA
- PLC interface variant enabling rapid, structured cabling to Weidmüller interface sub-assemblies via a 20-pin flat ribbon cable, significantly reducing wiring time in dense control cabinet and machine panel installations
- Applications interfacing u-remote stations with existing NPN-compatible PLC I/O infrastructure, where N-switching outputs are required to match the polarity convention of the connected controller
- High-density output installations where DIN rail space is at a premium — 16 channels in an 11.5 mm wide housing, with thermal cut-out short-circuit protection, automatic restart, and a protective circuit response under 100 µs for maximum system availability
- Hazardous area installations (ATEX/IECEx) and marine applications requiring certified digital output modules with ABS, ClassNK, DNV, and KR approvals
