Lenze 3-Phase AC Motor MFEMABR071-32C1C 1,1kW - unused

Lenze 3-Phase AC Motor MFEMABR071-32C1C 1,1kW - unused

  • €389,99
    Unit price per
Shipping calculated at checkout.


Lenze MF 3-Phase AC Motor MFEMABR071-32C1C 1,1kW



Kind of motor                    MF three-phase AC mot. FI-opt.
Motor                            MF 071-32
Motor code                       MFEMABR071-32C1C
Rated power                      1,1 kW
Motor design                     B14
Flange                           FT85 (C105)
Motor shaft dxl                  14x30 with featherkey
Rated speed                      3490 r/min
Rated torque                     3,01 Nm
Rated voltage                    200 / 345 V
Rated current                    5.50 / 3.20 A
Rated frequency                  120 Hz
Power factor                     0,77
Operating mode                   S1
Connection type                  Terminal box
Temperature class                F
Motor protection                 TCO (Thermal contact, NC)
Enclosure                        IP55
Colour                           RAL 7012 = Basalt grey
Surface/corrosion protection     OKS-S (Small; C1)
Cooling                          Integral fan
Brake version                    Spring-operated
Brake design                     longlife
Brake supply voltage             400 V AC
Brake size                       08
Braking torque                   3,5 Nm
Manual brake release             Without
Noise-optimised brake rotor      Yes
Brake with seal                  No
Motor code C86                   1581
Moment of inertia                13,41 kgcm2
Pos. of terminal box             T [2]
Mot power                        0 kW

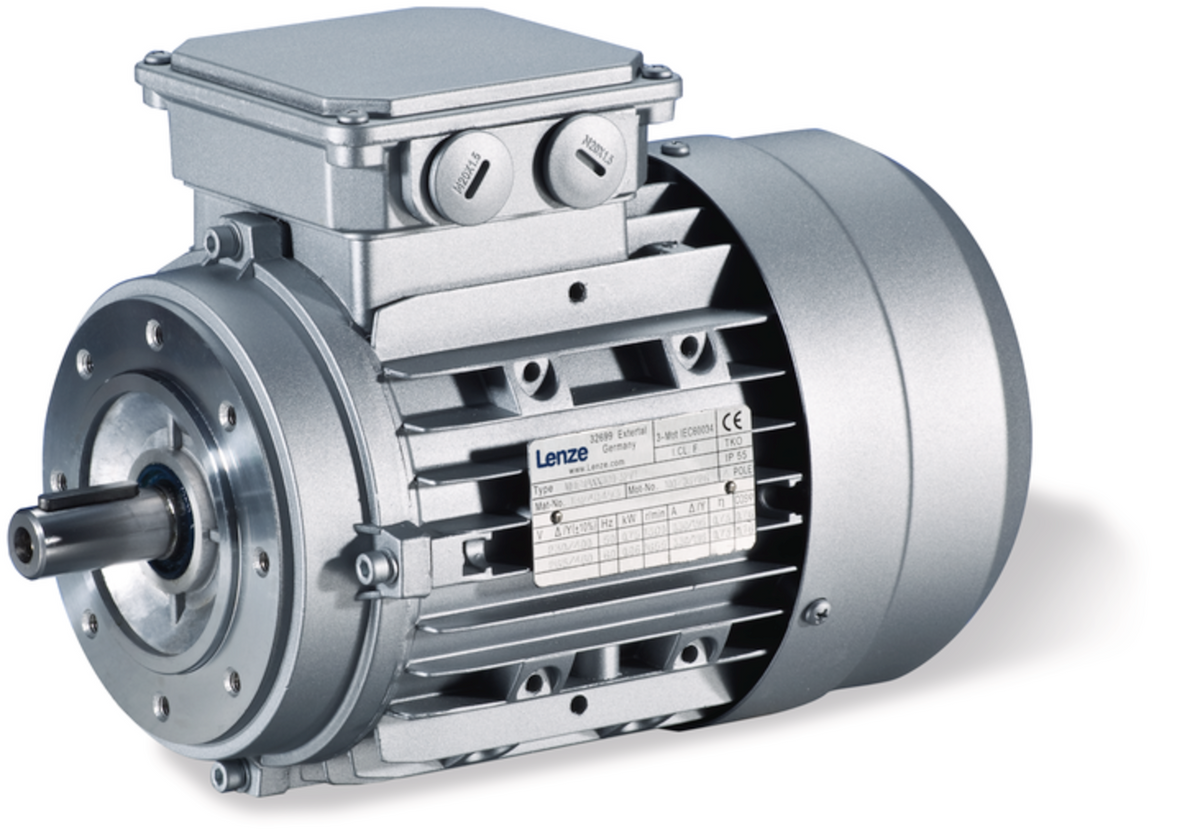

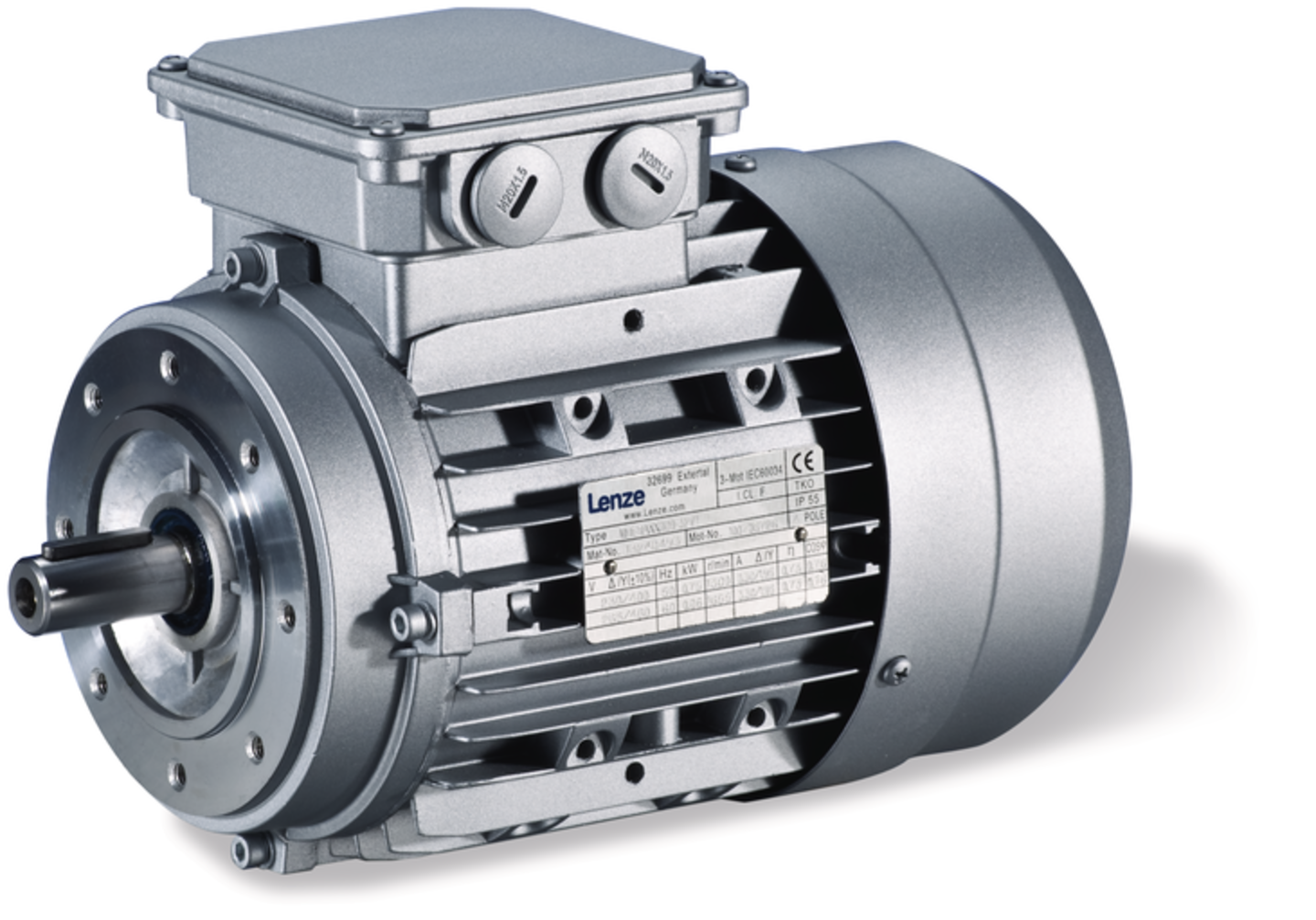

representative image / image représentative / imagen representativa / immagine rappresentativa /reprezentatywny obraz / imagem representativa



unused excess stock with durability guarantee

produit d'occasion inutilisé avec une garantie de durabilité

produkt nieużywany, używany, z gwarancją trwałości

Producto de segunda mano sin usar con garantía de durabilidad

prodotto di seconda mano inutilizzato con garanzia di durata

produto em segunda mão não utilizado com garantia de durabilidade
