Weidmüller UR20-4AI-I-HART-16-DIAG
Regular price
€383,99
inc. VAT
Regular price
-12%
€437,99
Sale price
€383,99
inc. VAT
Final shipping
calculated at checkout.
Add to cart to view estimated shipping cost.
Add to cart to view estimated shipping cost.

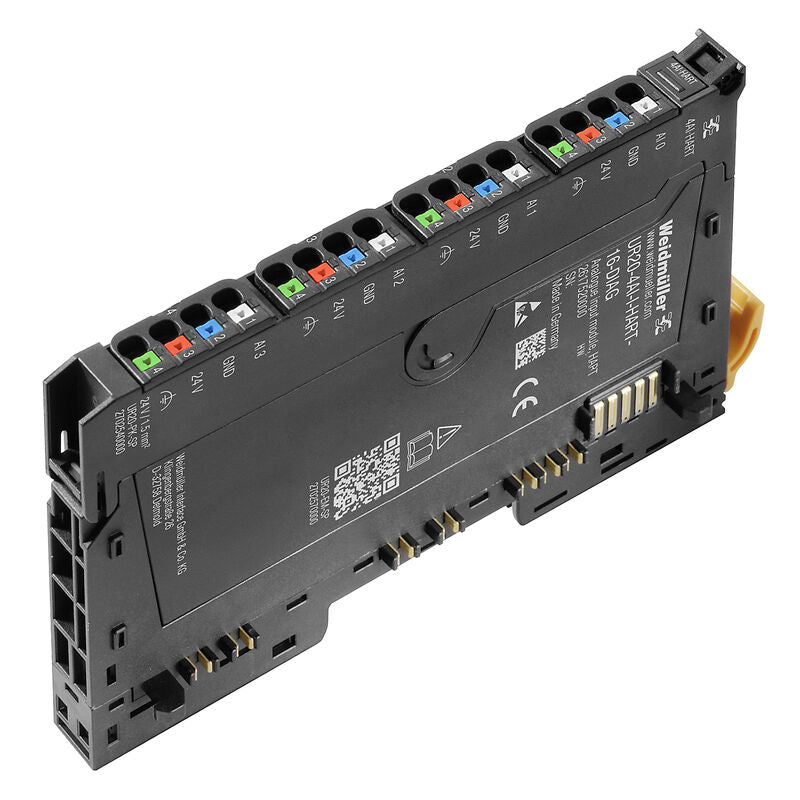

Weidmüller UR20-4AI-I-HART-16-DIAG / Lenze W540-C-2E-001 — analogue input module, 4-channel, current input with HART® protocol, 16-bit resolution, 24 V DC, PUSH IN, IP20, u-remote system, order no. 2617520000. A 4-channel analogue input module for the u-remote system with integrated HART® communication . The module provides integrated sensor supply from the input current path (UIN), with both module-level and individual channel diagnostics supported. Each channel features its own status LED for immediate visual fault indication. Compatible with all u-remote fieldbus head stations.
Available in stock — ships within 3 days after payment.
Product overview
| Manufacturer | Weidmüller Interface GmbH & Co. KG |
| Type | UR20-4AI-I-HART-16-DIAG |
| Order number | 2617520000 |
| GTIN (EAN) | 4050118622331 |
| System reference | Lenze W540-C-2E-001 |
| Product type | Remote I/O module, IP20, Analog signals, Input, 4-channel, HART®, PUSH IN connection |
| Module type | Analogue input module — 4-channel, current input, HART®, 16-bit with diagnostics |
| Number of analogue inputs | 4 |
| Resolution | 16 Bit |
| Accuracy | 0.1% FSR |
| Input signal types | Current I: 0…20 mA, 4…20 mA |
| HART® communication | Yes — integrated per channel |
| Conversion time | 1 ms |
| Internal resistance I | 250 Ω |
| Sensor supply | Yes |
| Reverse polarity protection | Yes |
| Module diagnosis | Yes |
| Individual channel diagnosis | Yes |
| Sensor connection | 2-wire, 3-wire, 4-wire |
| Supply voltage | 24 V DC +20% / –15%, via system bus |
| Current consumption from Isys, typ. | 8 mA |
| Current consumption from IIN | 27 mA + sensor feed |
| Galvanic isolation | 500 V DC between the current paths |
| Type of connection | PUSH IN |
| Wire cross-section | 0.14 mm²–1.5 mm² (AWG 26–16), solid and finely stranded |
| Fieldbus protocols | PROFINET IRT, EtherCAT, PROFIBUS DP-V1, Modbus/TCP, EtherNet/IP |
| Interface | u-remote system bus |
| Transmission speed, max. | 48 Mbit/s |
| Mounting | TS 35 DIN rail |
| Operating temperature | –20°C to +60°C |
| Storage temperature | –40°C to +85°C |
| Dimensions (W × H × D) | 11.5 mm × 120 mm × 76 mm |
| Mounting dimension – height | 128 mm |
| Net weight | 88 g |
| UL 94 flammability rating | V-0 |
| Pollution severity | 2 |
| Test voltage | 500 V |
| Surge voltage category | II |
| Vibration resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5 mm amplitude; 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration (IEC 60068-2-6) |
| Shock | 15 g over 11 ms, half sinus wave (IEC 60068-2-27) |
| Air humidity (operation/storage/transport) | 10% to 95%, non-condensing (DIN EN 61131-2) |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m, DIN EN 61131-2) |
| RoHS compliance | Compliant with exemption (7a, 7cI) |
| REACH SVHC | Lead 7439-92-1 |
| Product Carbon Footprint | 8.705 kg CO₂ eq. (cradle to gate) |
| Approvals / certifications | CE, UKCA, cULus (E141197), ATEX, IECEx, ClassNK, ABS, DNV, KoreaCert, RoHS compliant |
| Condition | New — in original packaging (OVP) |
Applications
- Process instrumentation with HART®-capable field devices — the integrated HART® protocol per channel allows simultaneous transmission of the primary process value via the 4…20 mA signal and access to secondary variables, device status, and diagnostic data without interrupting the running process or requiring separate HART® multiplexers
- High-precision current loop measurement in machine and plant engineering — 16-bit resolution and 0.1% FSR accuracy make the module suitable for demanding process control applications where measurement quality directly impacts product quality or safety, such as flow, pressure, level, and temperature acquisition
- Flexible field wiring configurations — each channel independently supports 2-wire, 3-wire, and 4-wire sensor connections via PUSH IN terminals, enabling mixed wiring topologies within a single module and simplifying integration of heterogeneous sensor networks
- Applications requiring comprehensive diagnostic transparency — individual channel diagnostics, module-level diagnostics, and per-channel status LEDs enable rapid fault localisation and reduce mean time to repair in automated production environments
- Hazardous area installations (ATEX/IECEx) and marine applications (ClassNK, ABS, DNV) requiring a certified, HART®-enabled analogue input module within the u-remote platform, compatible with all u-remote fieldbus head stations
