SS460S Honeywell High Sensitivity Latching Hall-effect Sensor 225pcs
Regular price
€165,39

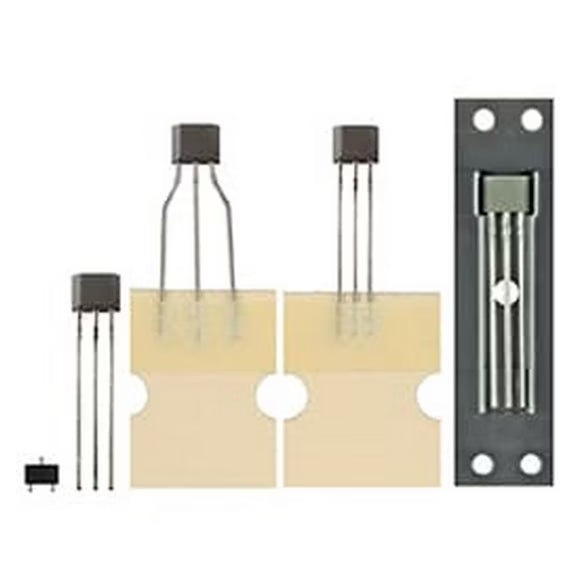

Honeywell SS460S High Sensitivity Latching Digital Hall-Effect Sensor IC — South Pole Activated, 3–24 Vdc, Flat TO-92-Style, Through-Hole, 225 pcs. Bipolar latching sensor without chopper stabilization, delivering the fastest response time in its class with a high magnetic sensitivity of 30 G typical (55 G maximum). Features built-in reverse polarity protection and a stable output across the full −40°C to +150°C operating range, making it well suited for brushless DC motor commutation and speed sensing.
Available in stock — ships within 3 days after payment.
Product overview
| Part number | SS460S |
| Manufacturer | Honeywell Sensing and Internet of Things |
| Date code | 21+ |
| Product type | High sensitivity latching digital Hall-effect sensor IC |
| Package | Flat TO-92-style, straight standard leads, through-hole |
| Magnetic activation | South pole activated (latching — responds to alternating N and S poles) |
| Supply voltage | 3.0 Vdc to 24.0 Vdc |
| Supply current (max.) | 8.0 mA |
| Output current (max.) | 20 mA |
| Output type | Digital current sinking (open collector) |
| Output saturation voltage (Vsat) | 0.6 V max. (at 15 mA, field > 55 G) |
| Magnetic sensitivity (operate Bop) | 5 G (min.) / 30 G (typ.) / 55 G (max.) |
| Magnetic sensitivity (release Brp) | −55 G (min.) / −30 G (typ.) / −5 G (max.) |
| Rise / fall time (max.) | 1.5 µs @ 25°C |
| Output leakage current (max.) | 10.0 µA |
| Reverse polarity protection | Yes (built-in) |
| Operating temperature | −40°C to +150°C |
| Storage temperature | −40°C to +165°C |
| Soldering (wave process) | 250°C to 260°C for 3 s max. |
| ESD sensitivity | Class 3a |
| RoHS compliance | Yes (meets Directive 2002/95) |
| Quantity | 225 pcs (bulk) |
| Condition | New — in original packaging (OVP) |
Applications
- Brushless DC motor commutation and speed/RPM sensing in electric motors, fans, and power tools
- Tachometer and counter pickup circuits in industrial automation and robotics control systems
- Flow-rate sensing for appliances and electronic window lift / anti-pinch power window systems in vehicles
- Medical equipment incorporating electric motors requiring reliable, high-sensitivity magnetic position detection
Shipping
- Ships within 3 days after payment
- Secure packaging for safe delivery
- Free delivery within Germany
Warranty & compliance
- 12-month warranty included
- Product is fully compliant with EU industry standards
- VAT invoice included with every order
(GPSR (EU) 2023/988): Contact us at info@liquisto.com for Manufacturer/EU Responsible Party product safety contact details.
