Weidmüller UR20-1COM-232-485-422-V2
Regular price
€154,99
Regular price
-51%
€313,99
Sale price
€154,99
Final shipping
calculated at checkout.
Add to cart to view estimated shipping cost.
Add to cart to view estimated shipping cost.

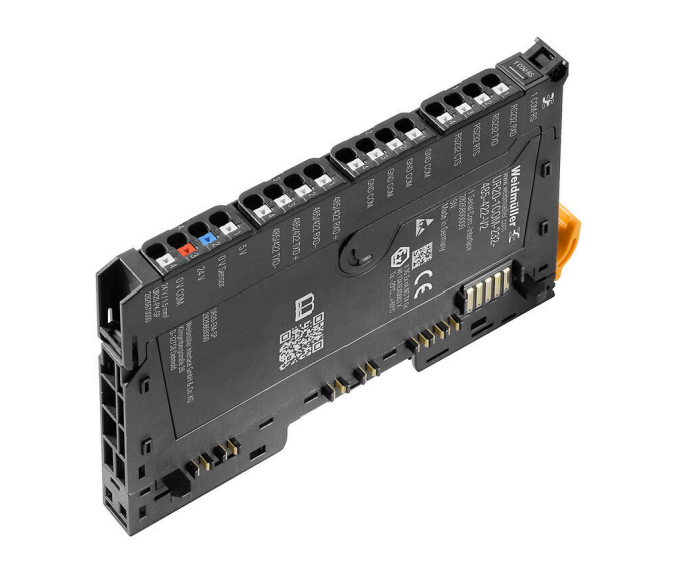

Weidmüller UR20-1COM-232-485-422-V2 / Lenze W580-C-NT-002 — 1-channel serial communication module, RS232/RS485/RS422, PUSH IN connection, IP20, u-remote system, order no. 2826800000. A single-channel functional communication module supporting RS232, RS485 and RS422 interfaces, enabling consistent integration of third-party devices into u-remote fieldbus-based automation systems via serial protocols, with galvanic isolation and sensor supply from the input current path.
Available in stock — ships within 3 days after payment.
Product overview
| Manufacturer | Weidmüller Interface GmbH & Co. KG |
| Type | UR20-1COM-232-485-422-V2 |
| Order number | 2826800000 |
| GTIN (EAN) | 4064675363354 |
| System reference | Lenze W580-C-NT-002 |
| Product type | Remote I/O functional module, 1-channel serial communication, IP20 |
| Interface type | RS232, RS485/RS422 |
| Standards RS232 | DIN 66020, DIN 66259, EIA-RS 232C, CCITT V.24/V.28 |
| Standards RS485/422 | DIN 66259 Part 1 and 3, EIA-RS 422/485, CCITT V.11 |
| Output current, supply voltage | max. 400 mA |
| Connection type | PUSH IN |
| Wire cross-section | 0.14 mm²–1.5 mm² (AWG 26–16), solid and finely stranded |
| Supply voltage | 24 V DC +20% / –15%, via system bus |
| Current consumption (Isys) | 8 mA typical |
| Current consumption (IIN) | 16 mA + load |
| Galvanic isolation | 500 V DC between current paths |
| Fieldbus protocols | PROFINET IRT/RT, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link, CC-Link IE TSN, IEC 61162-450 |
| System bus speed | max. 48 Mbit/s |
| Mounting | TS 35 DIN rail |
| Operating temperature | –20°C to +60°C |
| Storage temperature | –40°C to +85°C |
| Dimensions (W × H × D) | 11.5 mm × 120 mm × 76 mm |
| Net weight | 89 g |
| Vibration resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5 mm amplitude; 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration, as per IEC 60068-2-6 |
| Shock | 15 g over 11 ms, half sinus wave, IEC 60068-2-27 |
| UL 94 flammability rating | V-0 |
| RoHS compliance | Compliant with exemption (7a, 7cI) |
| REACH SVHC | Lead 7439-92-1 |
| Product Carbon Footprint | 8.705 kg CO₂ eq. (cradle to gate) |
| Approvals / certifications | CE, UKCA, cULus (E141197), ABS, ClassNK, DNV, KR, RoHS compliant |
| Condition | New — in original packaging (OVP) |
Applications
- Serial device integration into u-remote fieldbus systems via RS232, RS485 or RS422 interfaces
- Legacy device connectivity in distributed automation architectures supporting PROFINET, EtherCAT, Modbus/TCP and other major fieldbus protocols
- Point-to-point and multi-drop serial communication in machine and process automation systems requiring galvanic isolation
- Control cabinet installations on TS 35 DIN rail requiring compact 11.5 mm wide communication interface modules
